| Specification |

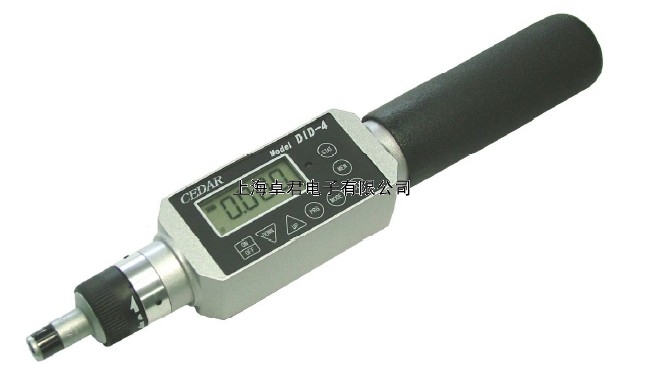

DID-4 |
Measuring range
|
0.020 - 4 N-m |
| 0.20～40 kgf-cm |
| 0.20～35 lbf-in |
| Accuracy |
± 0.5% (in case of reading 499 or less = last digit +/- 3 reading) |
| Display |
The 4 figures digital display of LCD |
| The measurement direction |
CW-CCW (right and left) |
Measuring
mode |
P-P Peak |
Holding Peak Load Value |
| T-R Track |
Showing Real time torque value ( Used for Zero-Adjustment ) |
| P-D Peak down |
Holding Load Value at the moment to change from upward to downword |
| C Real-time output |
Load torque value is outputted every about 1/ 160.
|
Decision
function |
Setting of torque value |
Programmable High and Low setpoints with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing |
|
The Maximum, the minimum, and the average value
|
Displays, memory and output the data number, the maximum, the minimum, and the average value of the measured value to 30 data. It can save by a maximum of 10 channels.
|
| Data spec. |
Data transfer |
ASCII format (Baud rate : 19200)
When outputting data,the cable(USB miniB) is needed. |
| Data memory |
800 data / ten channels data
|
| A setup of the number of counts |
One to 99 count (count in a direction with a bundle) |
| Power supply |
Ni-Cd chargeable battery 1.2V×4cells 600mAh |
| Auto power save |
10 minutes no use, automatically switch off. |
| Charging time |
From empty - less than 5hours |
| Continunous working time |
12 hours |
| Bit /Socket part |
HEX6.35 |
| Weight |
about 400g |
